Main Window

The StormTunnel main window is where you manage all your tunnels.

Window Layout

The window has three main areas:

Area Purpose
Sidebar (left) List of all your tunnels
Detail View (right) Information about selected tunnel
Toolbar (top) Quick actions and settings

The sidebar shows all your tunnels with their current status.

Status Indicators

Color Meaning
🟢 Green Connected
⚫ Gray Disconnected
🟡 Yellow Connecting
🔴 Red Error

Quick Actions

  • Click a tunnel to see its details
  • Double-click to connect/disconnect
  • Right-click for more options (edit, duplicate, delete)

Search and Filtering

The sidebar includes a powerful search feature to quickly find tunnels in large lists.

What Search Covers

Search filters tunnels in real-time based on:

Field Search Scope
Tunnel Name Full tunnel name (e.g., "dev-postgres")
Remote Host Server hostname (SSH) or AWS remote host
SSH User SSH username (e.g., "ec2-user")
Instance ID AWS Instance ID (for AWS Session Manager)
Local Port Local port number (e.g., "5432")
Remote Port Remote port number (e.g., "5432")
  1. Click the search field at the top of the sidebar
  2. Type your search query - results update instantly as you type
  3. Browse filtered list - only matching tunnels are shown
  4. Select a tunnel - click or use keyboard to select
  5. Clear search - press Esc or delete text to see all tunnels

Search Behavior

  • Case-insensitive: Search ignores letter case
  • Partial matches: Matches anywhere in the field
  • Real-time filtering: List updates immediately as you type
  • Multi-field search: Searches all fields simultaneously

Search Tips

Tip Example
Find by port Type "5432" to find PostgreSQL tunnels
Find by environment Type "dev" to find all dev tunnels
Find by user Type "ubuntu" to find user-specific
Find by service type Type "redis" for cache tunnels
Find AWS instances Type "i-012" to find specific EC2

Keyboard Shortcut

Press Cmd+F to instantly focus the search field from anywhere in the main window.

Search Performance

Search is optimized for performance even with hundreds of tunnels. Results appear instantly without delays.

Detail View

When you select a tunnel, the detail view shows:

  • Status - Connected/disconnected and duration
  • Connection info - Host, ports, SSH user
  • SSH Command - The underlying command (useful for debugging)
  • Actions - Edit, connect, delete buttons

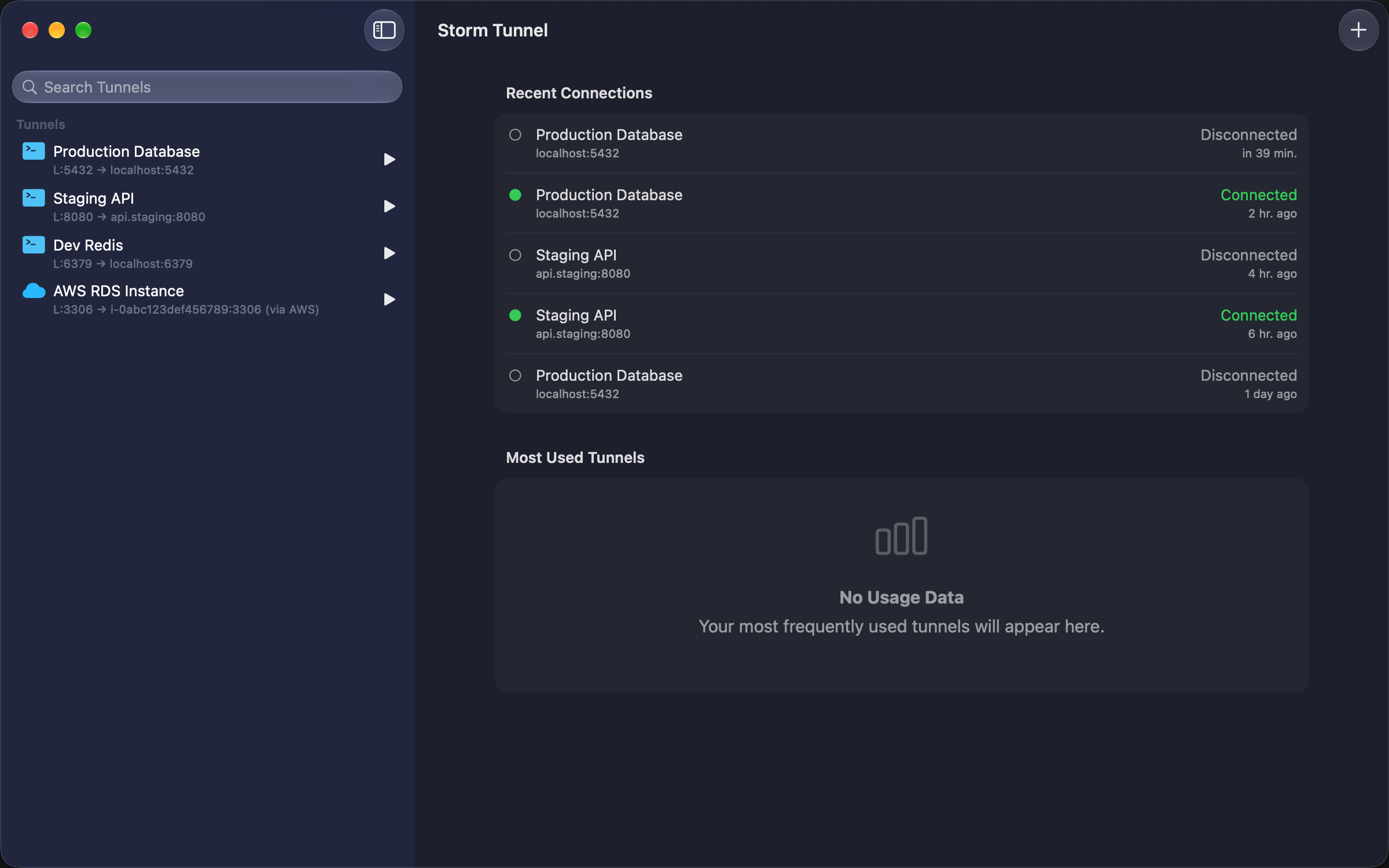

Dashboard

When no tunnel is selected, you see the dashboard with:

  • Total number of tunnels
  • How many are connected
  • Recent connection activity

Toolbar

Quick access buttons at the top:

Button Action Shortcut
+ Create new tunnel Cmd+N
Settings Open preferences Cmd+,

Tunnel Management

Duplicate Tunnel

Create a copy of an existing tunnel:

  • Keyboard: Cmd+D
  • Right-click: Select "Duplicate" from context menu
  • Menu: Edit → Duplicate
  • Behavior: Creates copy with "(Copy)" appended to name
  • Security: Password is NOT copied (must re-enter)

Quick Setup

Use duplicate when you need multiple similar tunnels with slightly different settings (e.g., same server but different ports). Save time by duplicating and editing instead of creating from scratch.

File Menu

Item Action Shortcut
New Tunnel Create tunnel Cmd+N
Import Import from file Cmd+I
Export Export to file Cmd+E

Edit Menu

Item Action Shortcut
Copy Copy SSH command Cmd+C
Duplicate Copy tunnel Cmd+D
Delete Remove tunnel Cmd+Del

View Menu

Item Action Shortcut
Toggle Sidebar Show/hide sidebar Cmd+\
Connection History Open history Cmd+H

Keyboard Shortcuts

Action Shortcut
Move up/down Up / Down
Select tunnel Enter
Connect/disconnect Space
Search Cmd+F

Actions

Action Shortcut
New tunnel Cmd+N
Settings Cmd+,
Edit tunnel Cmd+E
Delete tunnel Cmd+Del
Copy command Cmd+C

See Keyboard Shortcuts for the complete list.

Tips

Resize the Sidebar

Drag the divider between sidebar and detail view to adjust widths.

Use the Menu Bar

Enable Show in Menu Bar in Settings → General for quick access without opening the main window.

Copy SSH Commands

Select a tunnel and press Cmd+C to copy the SSH command. Useful for:

  • Debugging connection issues
  • Sharing setup with colleagues
  • Running manually in Terminal

Right-Click for Options

Right-click any tunnel for quick access to:

  • Edit
  • Duplicate
  • Connect/Disconnect
  • Copy Command
  • Delete
