General Settings

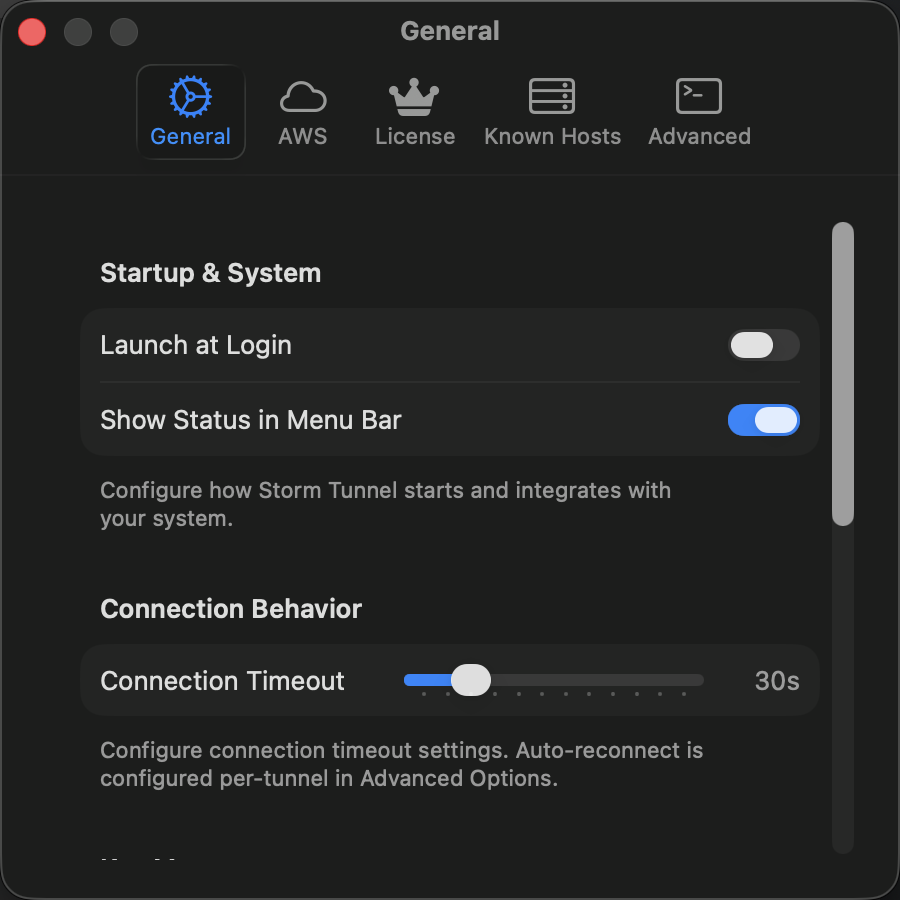

General Settings Window

The General Settings tab provides basic application configuration options that control StormTunnel's startup behavior, connection settings, and notification preferences.

🚀 Startup & System

Launch at Login

  • Control: Toggle switch
  • Default: Disabled
  • Function: Automatically starts StormTunnel when the user logs into macOS
  • Implementation: Uses LaunchAtLoginManager with macOS Login Items API
  • Security: Requires user permission to modify login items

Show Status in Menu Bar

  • Control: Toggle switch
  • Default: Enabled
  • Function: Displays connection status and quick actions in the macOS menu bar
  • Features:
    • Connection status indicator (active/inactive/error)
    • Quick access to common actions
    • Connection summary information
  • Implementation: Managed by MenuBarManager with immediate visibility updates

🔌 Connection Behavior

Connection Timeout

  • Control: Slider with value display
  • Range: 10-120 seconds (in 10-second increments)
  • Default: 30 seconds
  • Function: Maximum time to wait when establishing SSH connections
  • Applies to: All tunnel types (Standard SSH, AWS Session Manager, Dynamic Port Forwarding)
  • Technical Details:
    // Timeout configuration in SSH connection
let timeoutInterval = TimeInterval(connectionTimeout)
sshProcess.timeout = timeoutInterval
  • Performance Impact:
    • Lower values (10-20s): Faster failure detection but may timeout on slow connections
    • Higher values (60-120s): Better for unreliable networks but slower error reporting

🔐 Key Management

Show Stale Validation Warnings

  • Control: Toggle switch
  • Default: Enabled
  • Function: Warn users about SSH keys that haven't been validated in over 30 days
  • Security Purpose: Encourages regular key validation and rotation
  • Warning Criteria:
    • Key exists but hasn't been used for validation
    • Last validation date > 30 days ago
    • Key appears in SSH configuration but validation status is unknown
  • Implementation: Tracked in SSHKey model with lastValidated timestamp

🔔 Notifications

StormTunnel uses an intelligent notification system that routes messages appropriately based on app state and user preferences.

Prefer Toasts When App is Active

  • Control: Toggle switch
  • Default: Enabled
  • Function: Show in-app toast notifications when StormTunnel window is visible
  • Behavior:
    • Enabled: Toasts appear in app window for non-critical notifications
    • Disabled: All notifications go to system notification center
  • Toast Features:
    • Auto-dismiss after configurable duration
    • Non-intrusive overlay positioning
    • Action buttons for immediate response
    • Stacking for multiple notifications

Show System Notifications

  • Control: Toggle switch
  • Default: Enabled
  • Function: Display macOS notification center banners when app is in background
  • System Integration:
    • Uses UNUserNotificationCenter for native notifications
    • Respects macOS notification preferences
    • Works with Do Not Disturb mode
  • Background Detection: Automatically detects when app loses focus

Always Show Critical Errors as System Notifications

  • Control: Toggle switch
  • Default: Enabled
  • Function: Forces critical errors to use system notifications regardless of app state
  • Dependency: Requires "Show system notifications" to be enabled
  • Critical Error Types:
    • Authentication failures
    • Connection security warnings
    • License expiration alerts
    • System-level errors
  • Behavior: Shows both toast (if app active) and system notification

Enable Notification Sounds

  • Control: Toggle switch
  • Default: Enabled
  • Function: Play sound effects for notifications and alerts
  • Sound Types:
    • Connection Success: Positive chime
    • Connection Error: Warning tone
    • Critical Error: Alert sound
    • License Expiry: Reminder chime
  • System Integration: Uses NSSound with respect to system volume settings

🎯 Notification Routing Logic

The notification system uses intelligent routing based on multiple factors:

Decision Matrix

App State Toast Preference System Notification Result
Active Enabled Enabled Toast only (non-critical), System + Toast (critical)
Active Enabled Disabled Toast only
Active Disabled Enabled System only
Active Disabled Disabled No notifications
Background Any Enabled System only
Background Any Disabled No notifications

Implementation Details

// Notification routing logic
func routeNotification(_ message: UserMessage) {
    let isAppActive = NSApplication.shared.isActive
    let preferToasts = preferToastsWhenActive
    let showSystem = showSystemNotifications
    let isCritical = message.severity == .critical

    let showToast = isAppActive && preferToasts && !isCritical
    let showSystemNotification = (!isAppActive || !preferToasts || isCritical) && showSystem

    if showToast {
        ToastManager.shared.show(message)
    }

    if showSystemNotification {
        SystemNotificationService.shared.show(message)
    }
}

🔧 Technical Implementation

Settings Persistence

All General Settings are stored using UserDefaultsManager with immediate persistence:

// Launch at Login
UserDefaultsManager.shared.set(isLaunchAtLoginEnabled, forKey: "launchAtLogin")

// Menu Bar Status
UserDefaultsManager.shared.set(showStatusInMenuBar, forKey: "ui.showStatusInMenuBar")

// Connection Timeout
UserDefaultsManager.shared.set(Int(connectionTimeout), forKey: "settings.connectionTimeout")

// Notification Preferences
UserDefaultsManager.shared.set(preferToastsWhenActive, forKey: "preferToastsWhenActive")
UserDefaultsManager.shared.set(showSystemNotifications, forKey: "showSystemNotifications")
UserDefaultsManager.shared.set(alwaysShowCriticalAsSystem, forKey: "alwaysShowCriticalAsSystem")
UserDefaultsManager.shared.set(enableNotificationSounds, forKey: "notifications.enableSounds")

Real-time Updates

Settings changes take effect immediately:

  • Menu Bar: Visibility updates instantly when toggled
  • Connection Timeout: Applies to new connections immediately
  • Notifications: Routing preferences update in real-time
  • Launch at Login: Modifies system login items immediately

Default Values

First-time users get sensible defaults:

// Default configuration for new installations
struct GeneralSettingsDefaults {
    static let launchAtLogin = false
    static let showStatusInMenuBar = true
    static let connectionTimeout = 30.0
    static let preferToastsWhenActive = true
    static let showSystemNotifications = true
    static let alwaysShowCriticalAsSystem = true
    static let enableNotificationSounds = true
    static let showStaleValidationWarnings = true
}

🎨 User Experience

Interface Design

  • Grouped Form Style: Uses macOS native form styling
  • Help Text: Contextual help available for all controls
  • Section Headers: Clear categorization of settings
  • Footer Text: Explanatory text for each section

Accessibility

  • VoiceOver Support: All controls properly labeled
  • Keyboard Navigation: Full tab navigation support
  • High Contrast: Respects system contrast settings
  • Reduced Motion: Animations respect accessibility preferences

Performance Considerations

  • Immediate Persistence: Settings save instantly without UI delay
  • Efficient Updates: Only affected services receive change notifications
  • Memory Management: Lightweight property observers prevent memory leaks

🔒 Security & Privacy

Data Protection

  • Local Storage: All settings stored locally in UserDefaults
  • No Telemetry: General settings don't transmit any data
  • Permission Respect: All system integrations require explicit user permission

Privacy Features

  • Notification Control: Users control exactly what notifications they see
  • Background Behavior: Clear indication of when app works in background
  • Key Validation: Optional stale key warnings enhance security awareness

Last Updated: December 17, 2025 Implementation Files: GeneralSettingsView.swift, SettingsViewModel.swift
